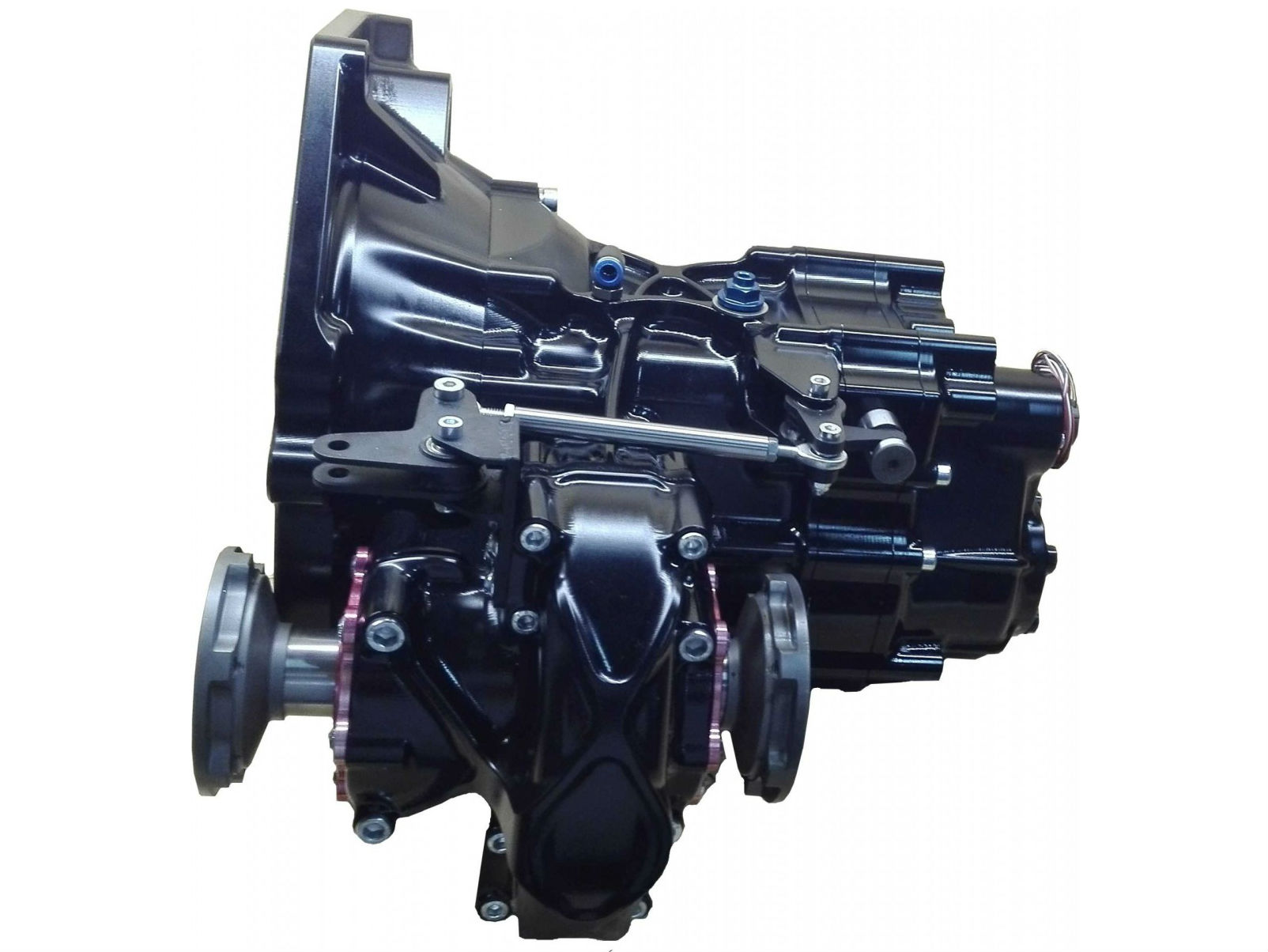

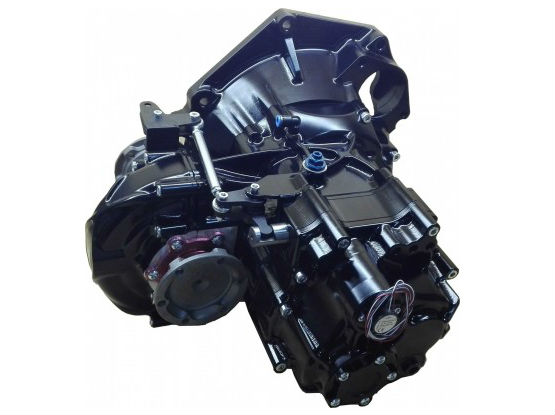

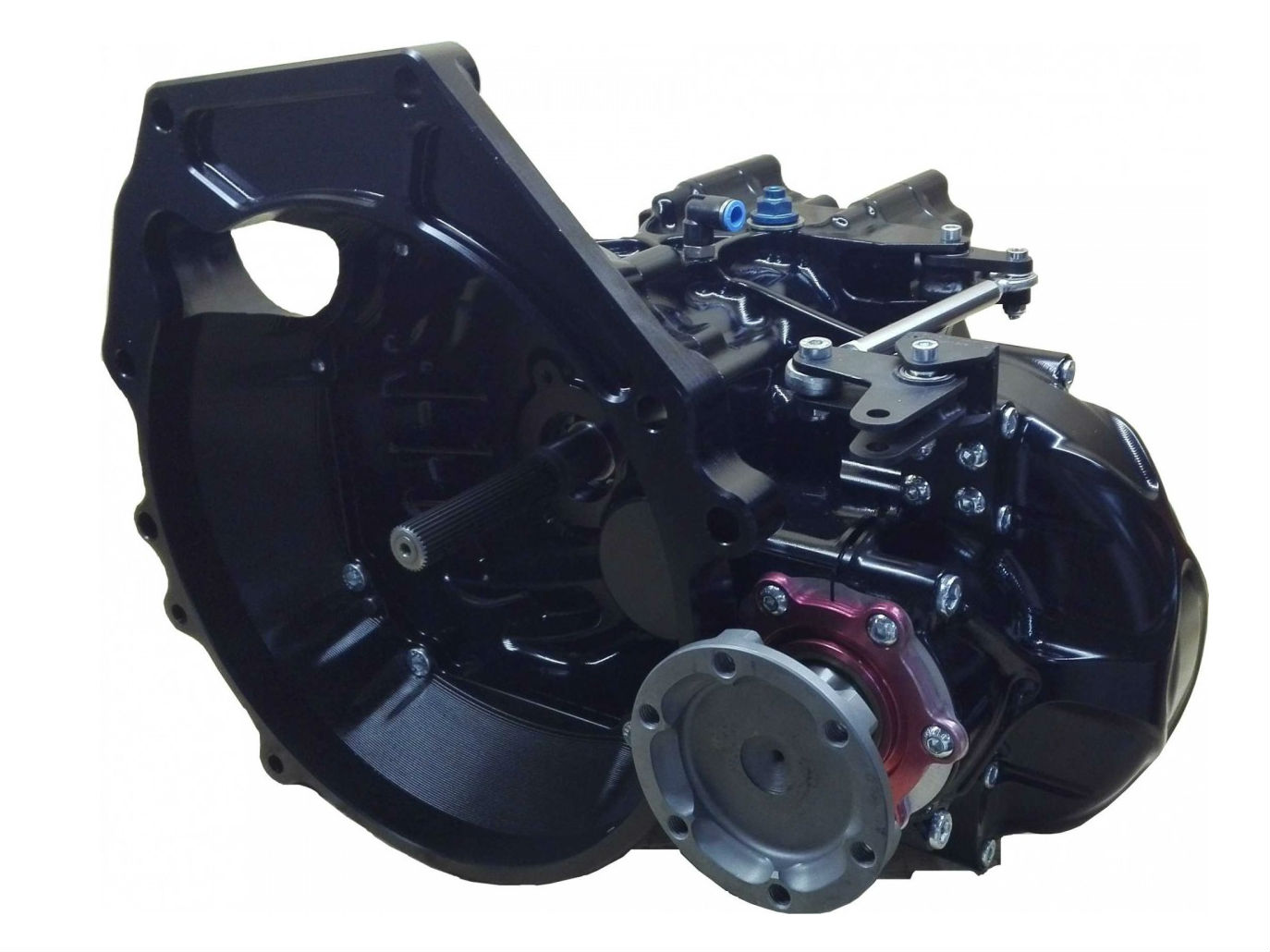

Beckert Technology reverse direction Honda B 6 Speed FWD sequential gearbox. With Honda B bell housing fitment.
Rated for 350Nm (260lb/ft), and supplied with a one year warranty against shaft and gear teeth issues.(Higher torque ratings are possible with the longer final drive options).
6 speed and reverse, straight cut with dog engagement, hydraulic clutch release bearing, and plate LSD.
The input and output shafts run on a three bearing set which minimises shaft flex and maintains gear on gear geometry – a significant advantage over the competition.

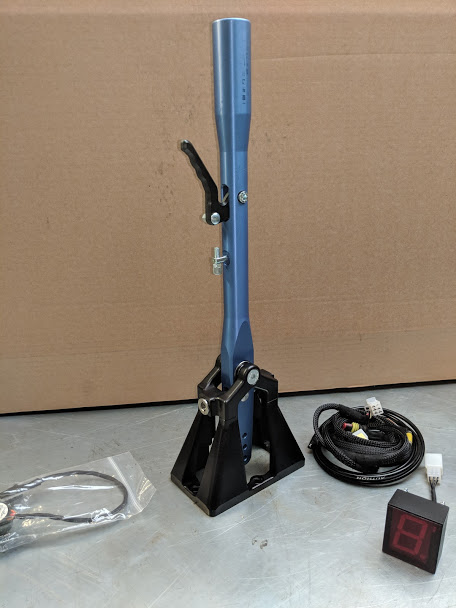

The kit comes complete with billet gear lever/connecting rods and rose-joints, output flanges, universal mounting brackets, and intermediate shaft.
Satchell Engineering driveshafts and inner lobro joints can be supplied at extra cost, based upon customer measurements, and will be splined to suit your existing outer CV joints.
Gearbox sensor and dash display available as an optional extra.
Standard gear ratios:
1q: 2.636 2q: 2 3q: 1.667 4q: 1.438 5q: 1.235 / 1.278 6q: 1.05/ 1.095 / 1.136
FD: 3.0 / 3.81 / 4.08 / 4.3 / 4.67 / 5.0 (The 5.0 is fine toothed and rated for 225hp max)
Alternative ratios ideal for Rallycross-
1q: 2.909 2q: 2.455 3q: 2.083 q: 1.769 5q: 1.533 6q: 1.375
Or Homologated Honda F2 ratios as follows-
1q: 2.929 2q: 2.357 3q:1.9383 4q: 1.611 5q: 1.350 6q: 1.158. Plus a 4.69 homologated final drive.
Or wider ratios for circuit –
1q: 2.909 2q: 2.364 3q:1.923 4q: 1.563 5q: 1.1.278 6q: 1.10
Weight: 35.5 kg
We can supply a full range of spare parts, and offer a full maintenance/rebuild service..
Option available for 50% deposit followed by 50% after assembly and prior to dispatch, please e-mail us to discuss.
Postage prices quoted are for mainland UK addresses only.
